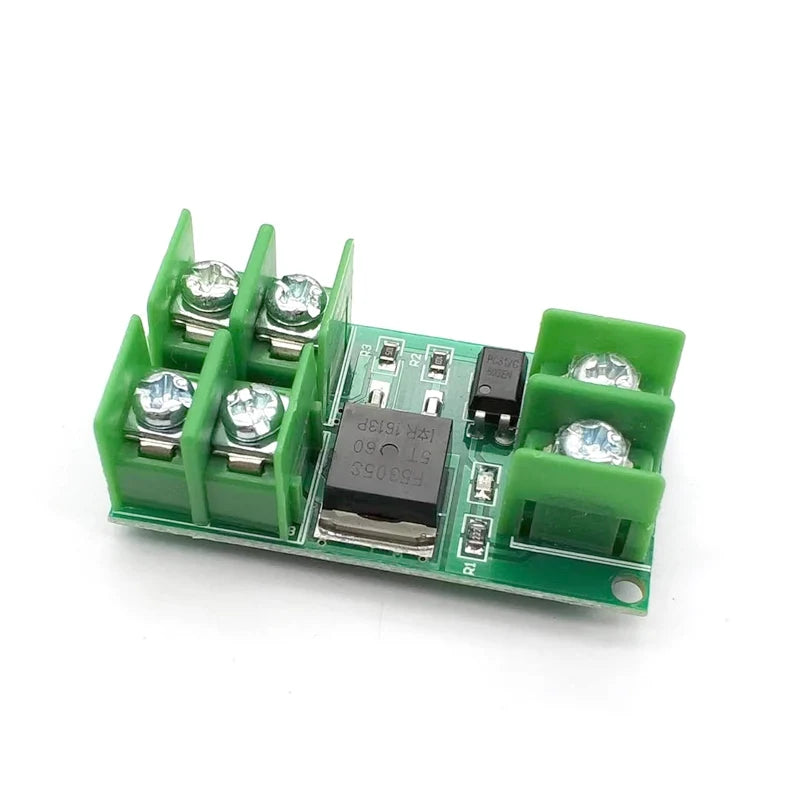

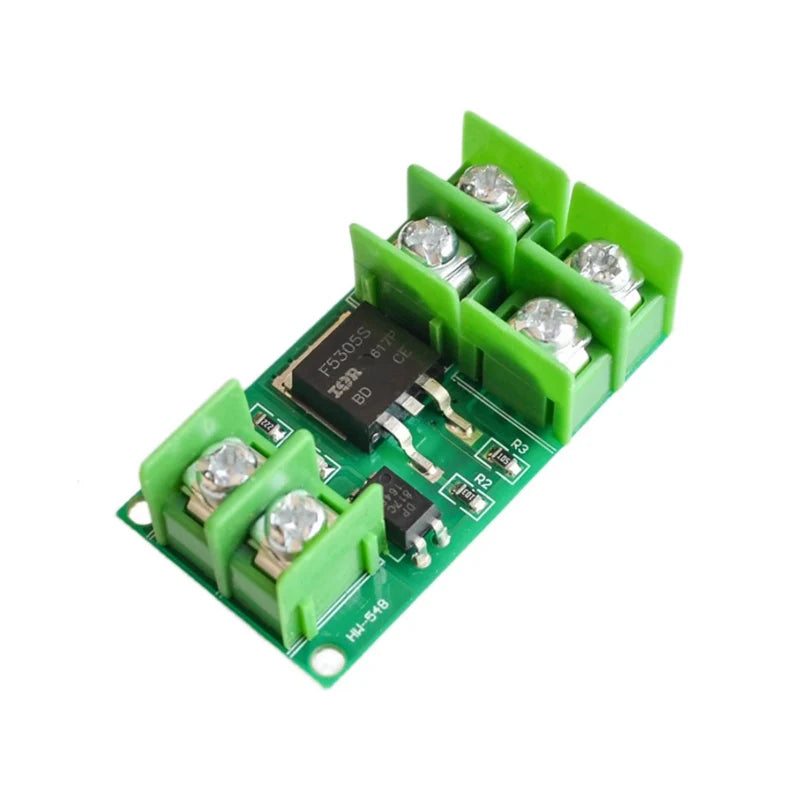

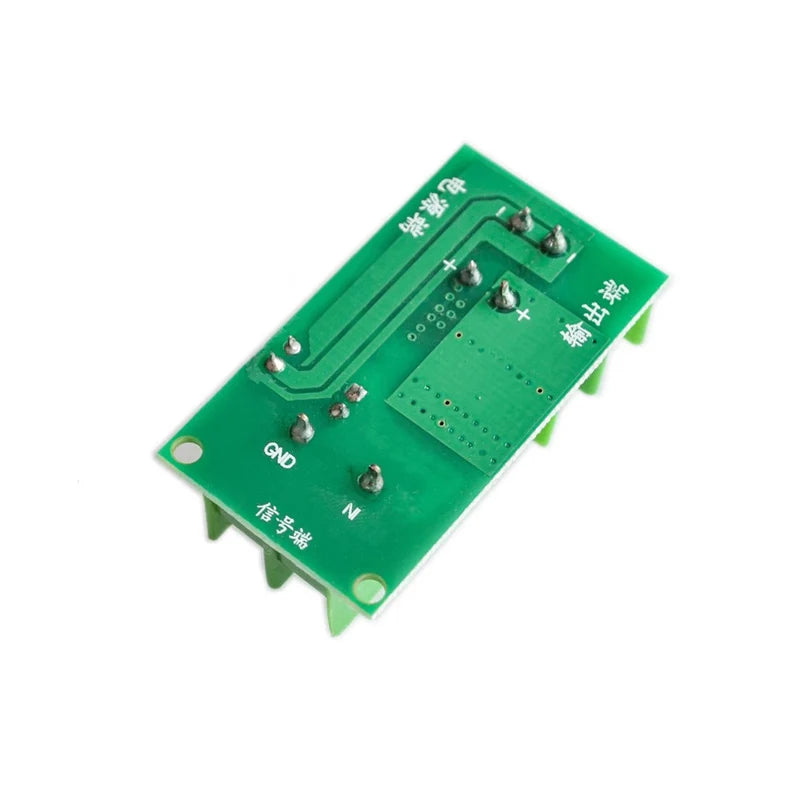

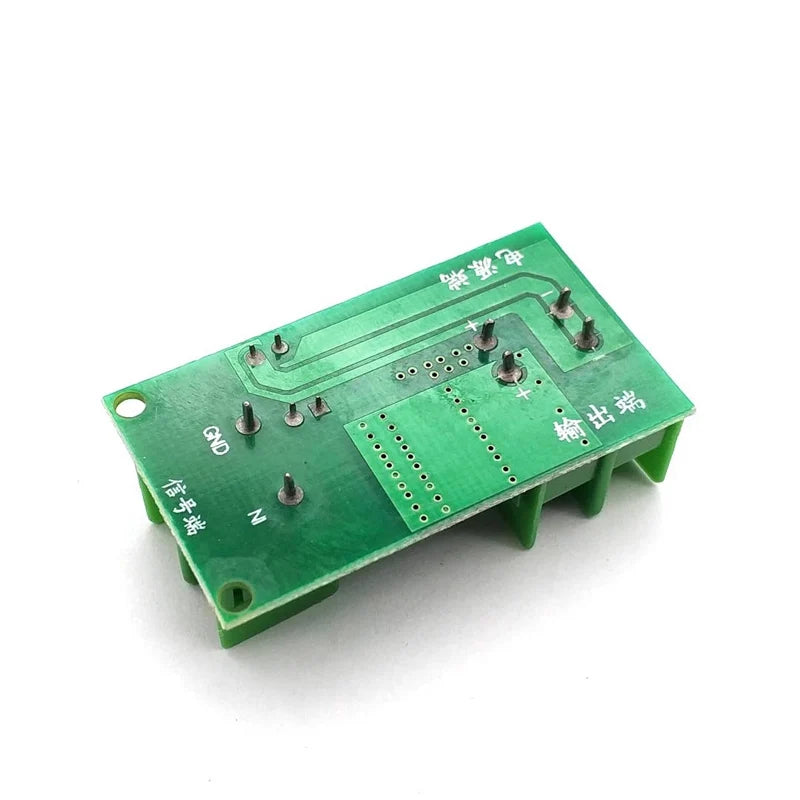

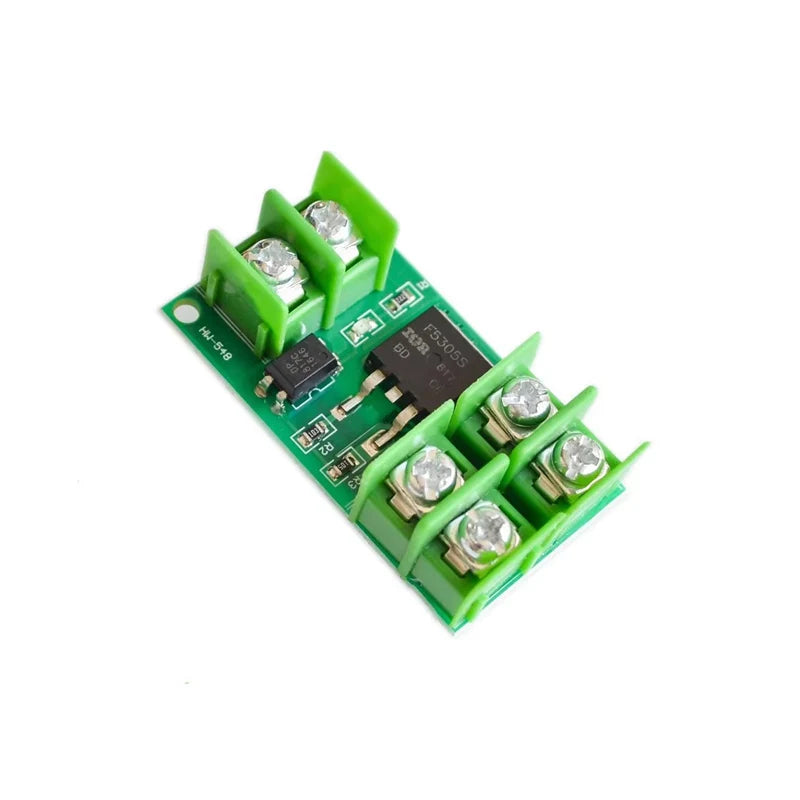

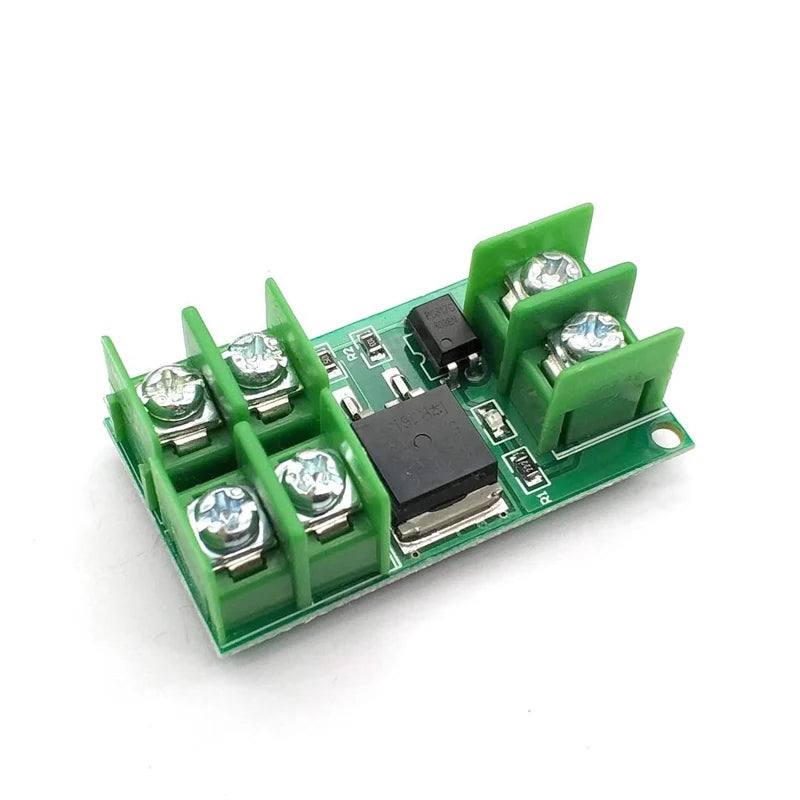

Product Introduction:

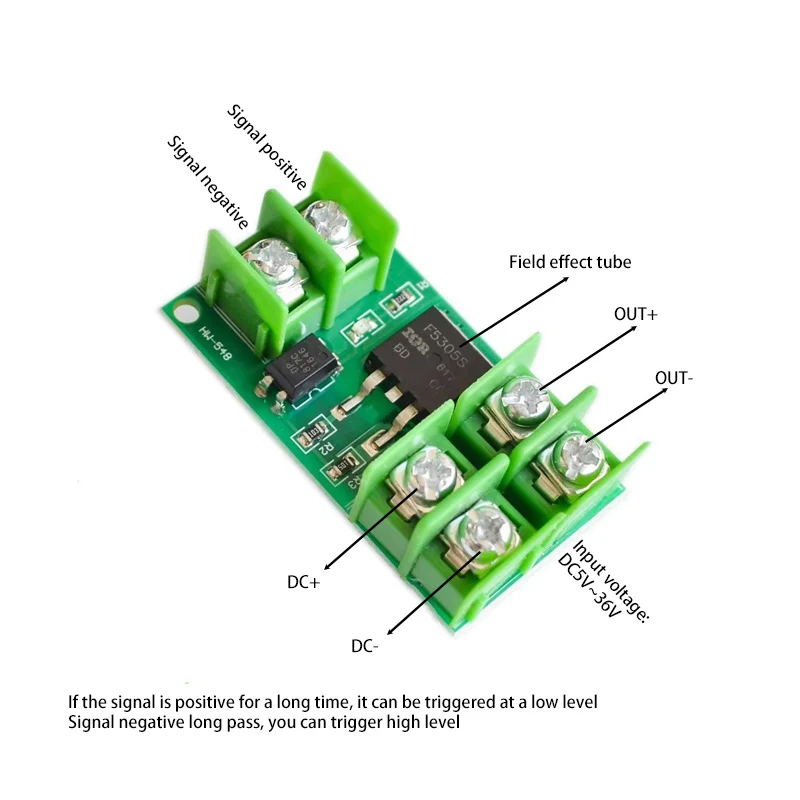

1: FET module, input and output are completely isolated.
2: signal trigger end: digital high and low level. Can be connected to MCU IO port, PLC interface, DC power supply, etc.
3: Input signal voltage: 3V~24V; Current: about 5ma.
4: The output end can control high-power equipment, motors, bulbs, LED lights, DC motors, micro-pumps, solenoid valves, etc
5: Output controlled voltage: 5V~36V. Current: within 5A greater than 5A need to add heat sink, maximum can not exceed 20A.
6: Using the original F5305S power field effect tube, you can input PWM, control motor speed, lamp brightness, etc.
Product test video demonstration address: (5A motor for testing, basically will not heat)
