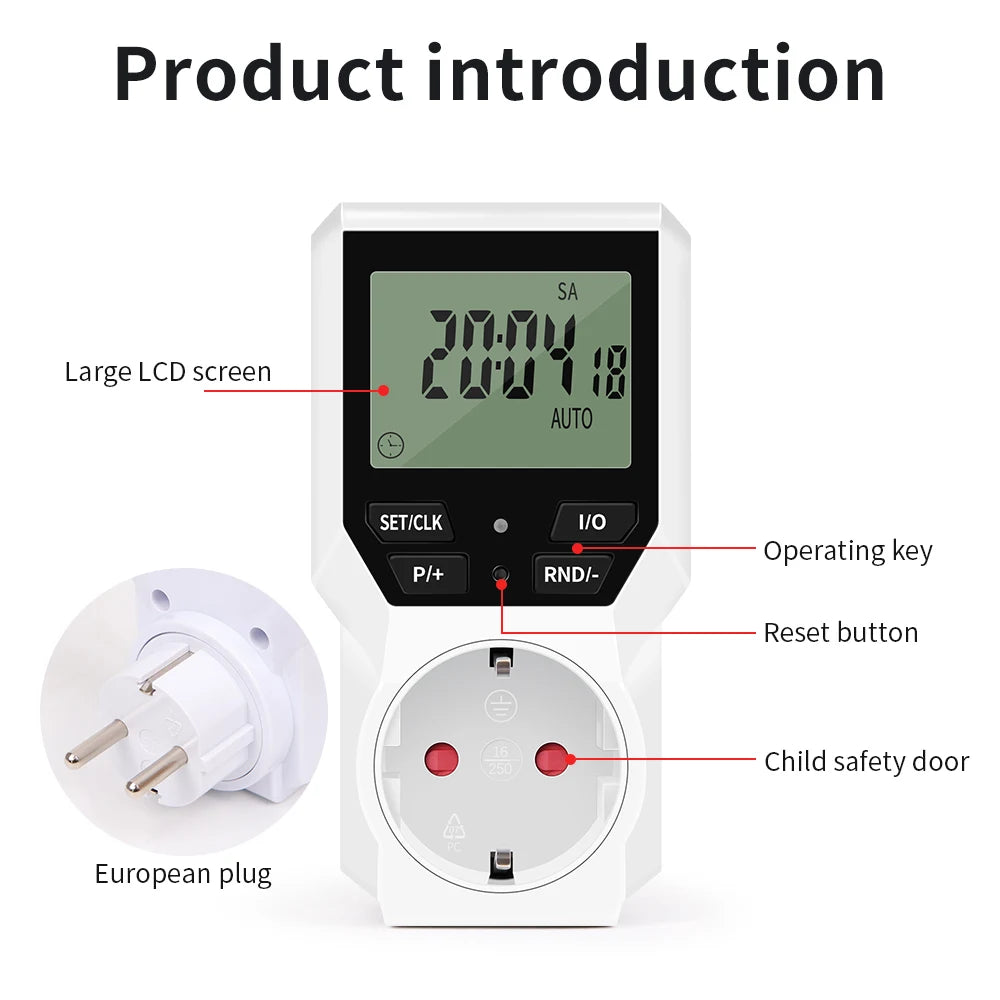

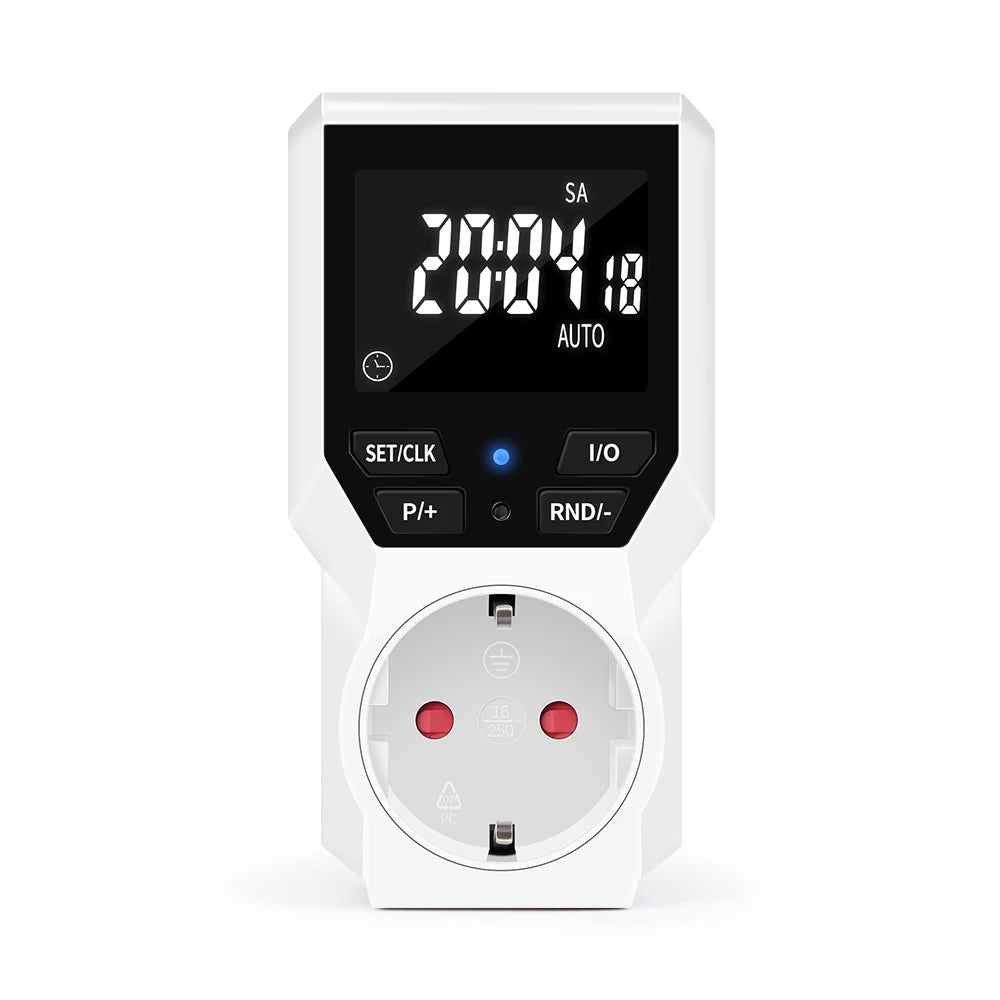

Digital Electronic Timer Switch EU Plug LCD Display Programmable Timer Socket 10 Group Timing Automatic Surge Protector

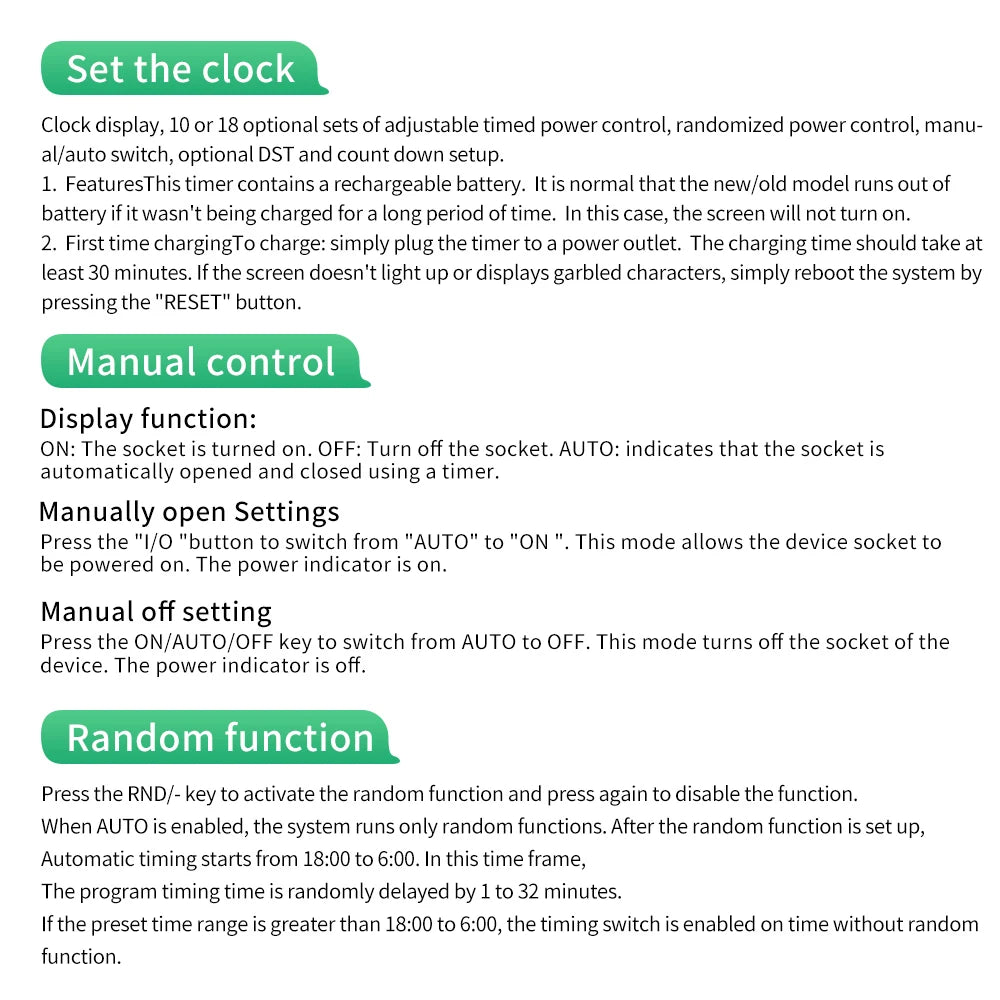

Set the clock

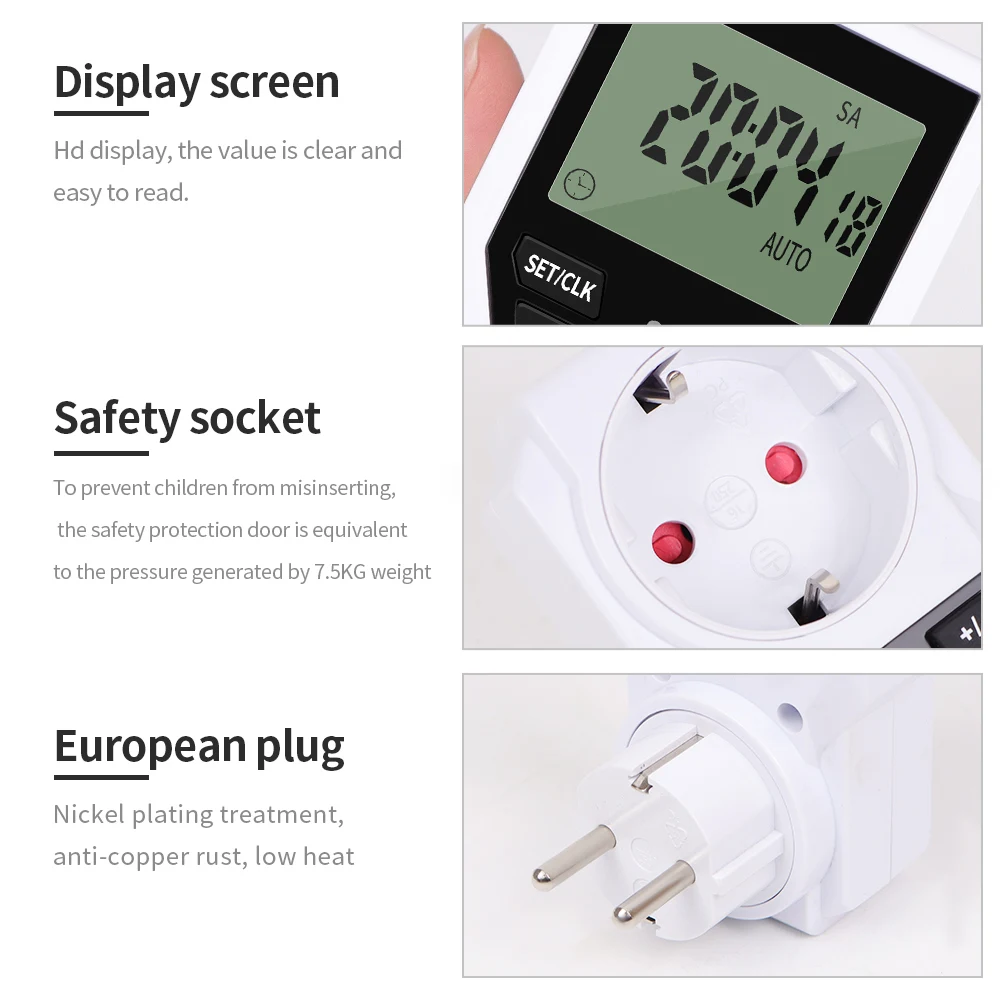

Clock display, 10 or 18 optional sets of adjustable timed power control, randomized power control, manual/auto switch, optional DST and count down setup.

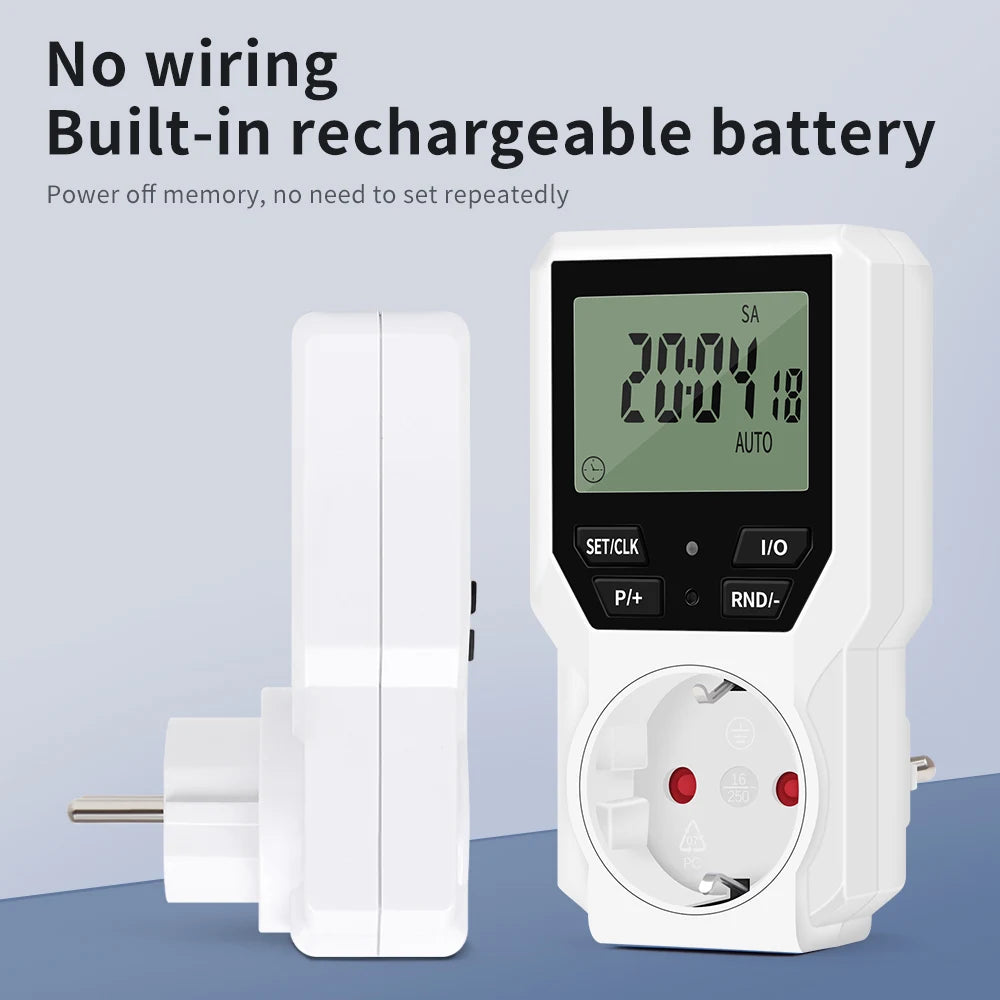

1. FeaturesThis timer contains a rechargeable battery. lt is normal that the new/old model runs out of battery if it wasn't being charged for a long period of time. In this case, the screen will not turn on.

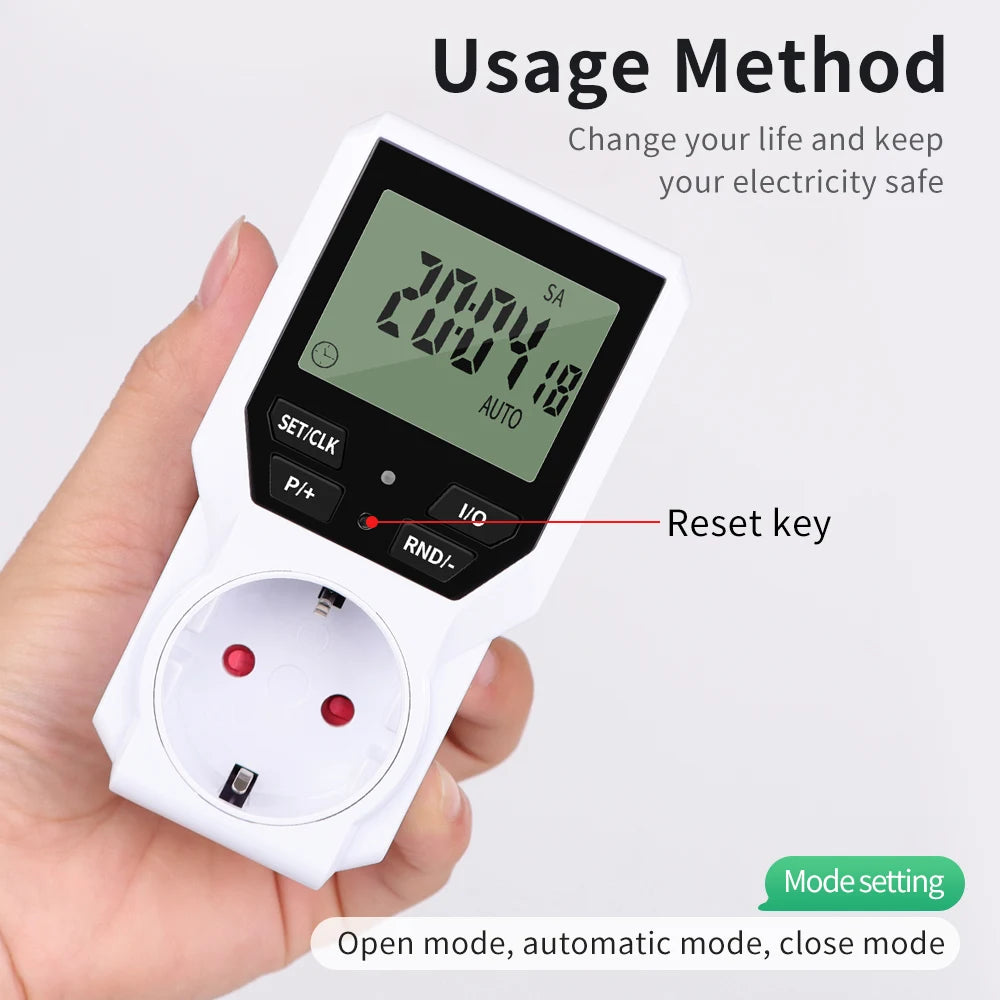

2. First time chargingTo charge: simply plug the timer to a power outlet. The charging time should take at least 30 minutes. lf the screen doesn't light up or displays garbled characters, simply reboot the system by pressing the "RESET" button.

Manual control

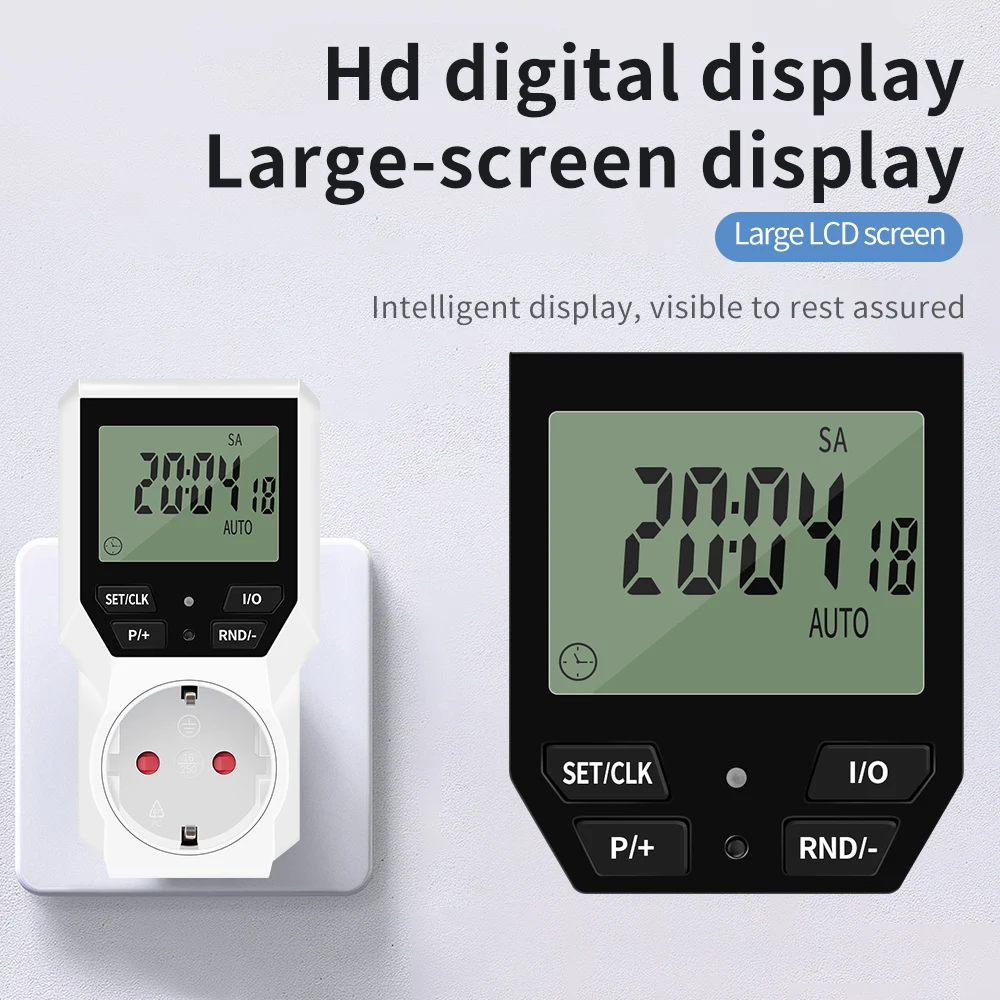

Display function:
ON: The socket is turned on.
OFF: Turn off the socket.
AUTO: indicates that the socket is automatically opened and closed using a timer.

Manually open Settings:
Press the "/0 "button to switch from "AUTO" to "ON ". This mode allows the device socket to be powered on.The power indicator is on.

Manual off setting:
Press the ON/AUTO/OFF key to switch from AUTO to OFF. This mode turns off the socket of the device.The powerindicator is off.

Random function

Press the RND/- key to activate the random function and press again to disable the function.
When AUTO is enabled, the system runs only random functions. After the random function is set up, Automatic timing starts from 18:00 to 6:00. In this time frame,The program timing time is randomly delayed by 1 to 32 minutes.
If the preset time range is greater than 18:00 to 6:00, the timing switch is enabled on time without randomfunction.

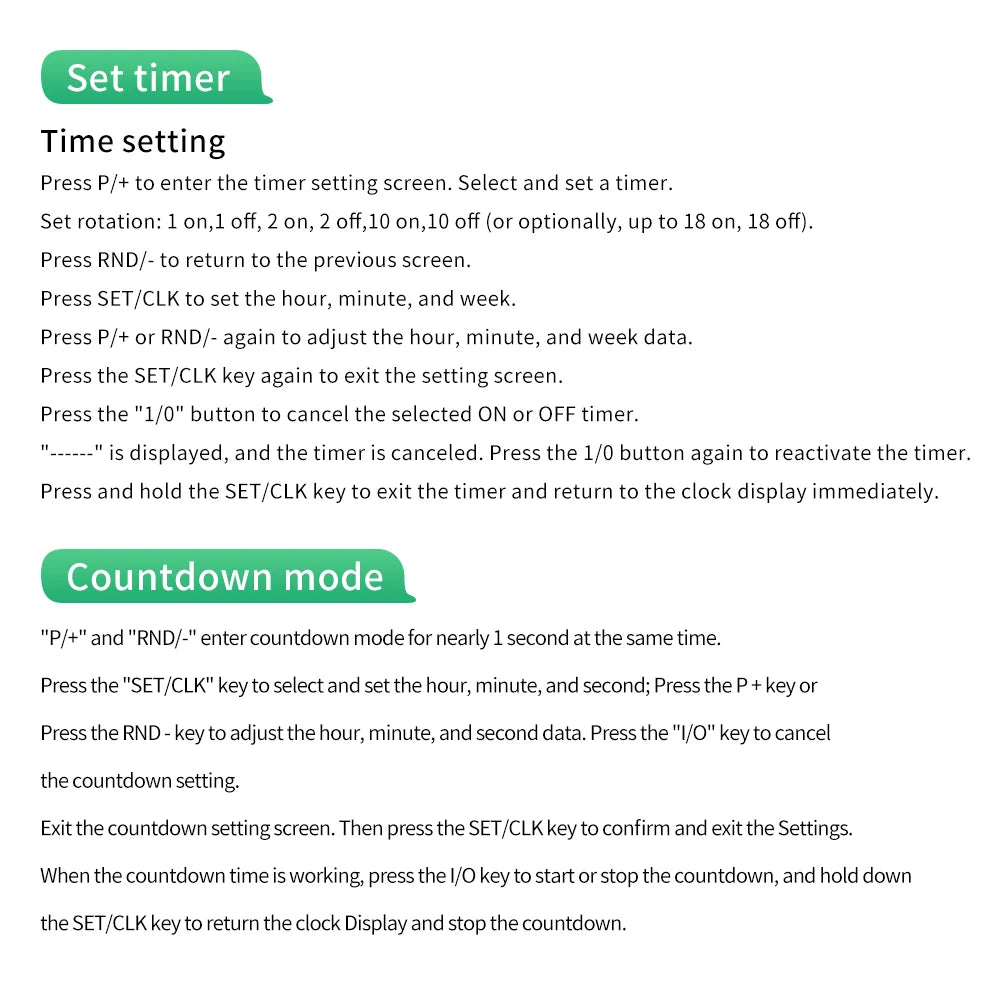

Set timer

Time setting
Press P/+ to enter the timer setting screen. Select and set a timer.
Set rotation: 1 on,l off, 2 on, 2 off,10 on,10 off (or optionally, up to 18 on, 18 off).
Press RND/- to return to the previous screen.
Press SET/CLK to set the hour, minute, and week.
Press P/+ or RND/- again to adjust the hour, minute, and week data.
Press the SET/CLK key again to exit the setting screen.
Press the "1/0" button to cancel the selected ON or OFF timer.
"...." is displayed, and the timer is canceled. Press the 1/0 button again to reactivate the timer.
Press and hold the SET/CLK key to exit the timer and return to the clock displayimmediately.

Countdown mode

"P/+" and "RND/-" enter countdown mode for nearly 1 second at the same time.
Press the "SET/CLK" key to select and set the hour, minute, and second; Press the P + key orPress the RND - key to adjust the hour, minute, and second data. Press the "l/0" key to cancelthe countdown setting.
Exit the countdown setting screen. Then press the SET/CLK key to confirm and exit the Settings.
When the countdown time is working, press the l/0 key to start or stop the countdown, and hold downthe SET/CLK key to return the clock Display and stop the countdown.
